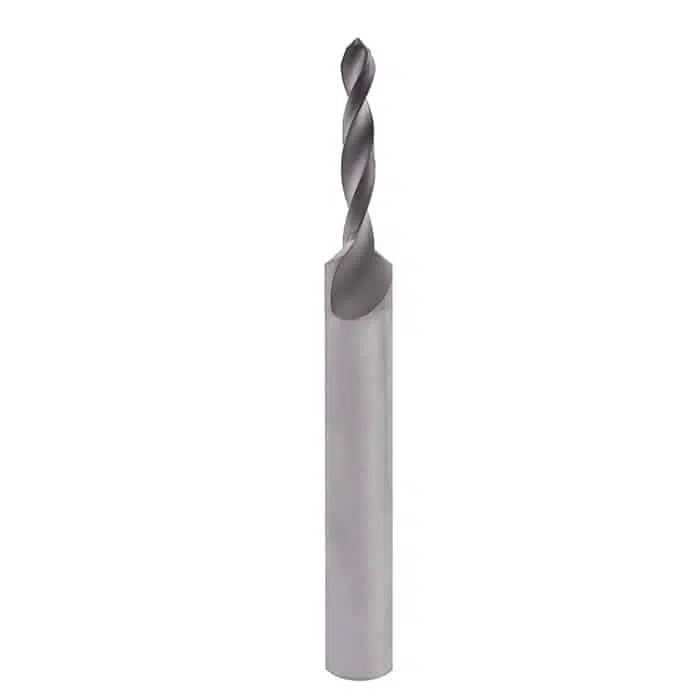

CVD Drill – Countersink

The use of one tool drilling and countersinking saves costs such as the need to use a drill and countersink separately and reduces the amount of measuring and accurate machine set-up.
Product can be supplied with PCD drill head and PCD countersink, and one or two cutting edges. It can also be supplied with carbide drilling head and PCD countersink and also as a complete CVD diamond solution.
Can be supplied with through coolant holes.
Dimensions of the tool are determined by the customer according to specific application requirements.

want to order variety of sizes of your choice or have any questions?

Feel free to contact us:

DRAWING (inch)

PLEASE CHECK YOUR SELECTED ITEM FOR QUOTE

INCH

cat#	Cutting Diameter	Shank Diameter (h6)	LOC	OAL	Body Diameter (+/-.01)	CSK Angle
CSDR165250I	0.165	1/4	acc request	acc request	0.375	100/130
CSDR191375I	0.191	3/8	acc request	acc request	0.5	100/130
CSDR251313I	0.251	5/16	acc request	acc request	0.625	100/130
CSDR313313I	0.3125	5/16	acc request	acc request	0.625	100/130

DRAWING
