PCD Cutting Tools for CFRP/GFRP Machining: A Deep Dive

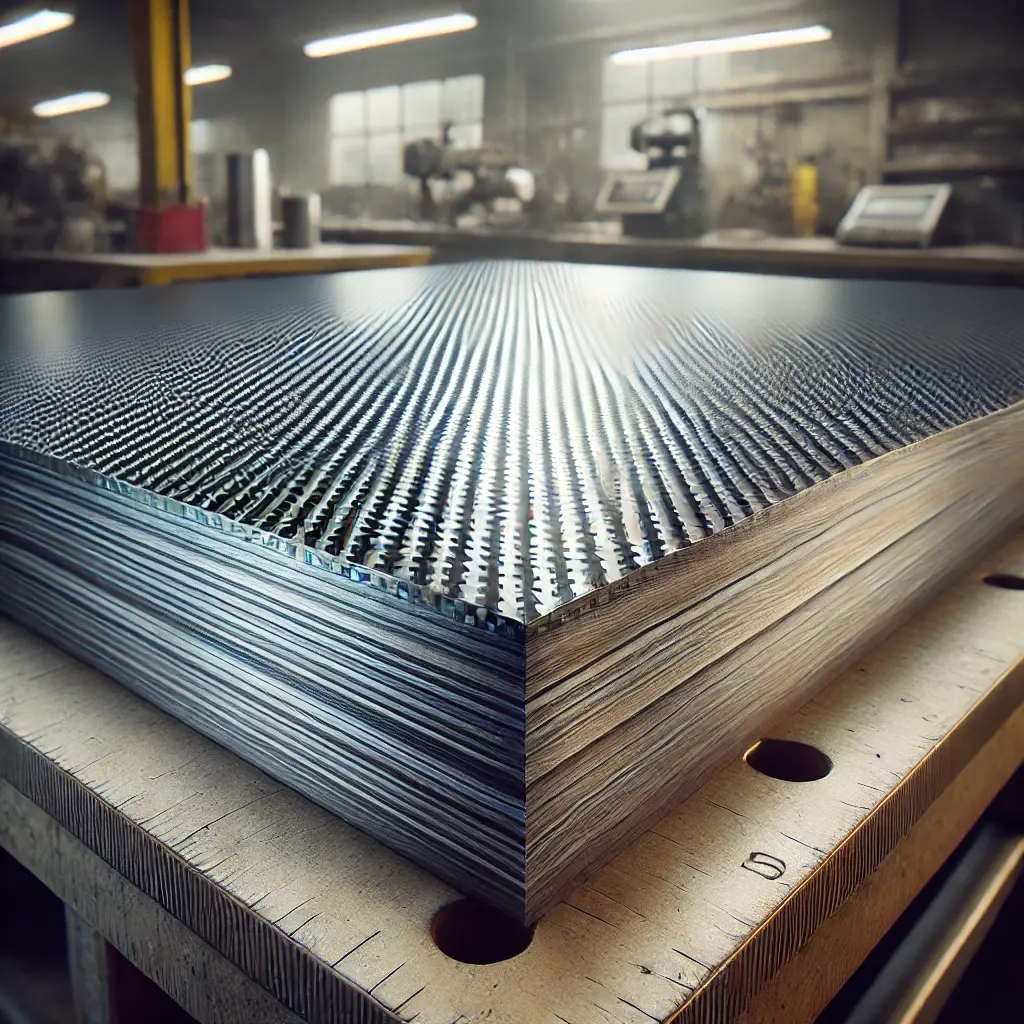

Carbon Fiber Reinforced Polymers (CFRP) and Glass Fiber Reinforced Polymers (GFRP) are widely used in aerospace, automotive, and renewable energy industries due to their exceptional strength-to-weight ratio, corrosion resistance, and design flexibility. However, machining these composites presents unique challenges due to their abrasive nature and layered structure. This is where Polycrystalline Diamond (PCD) cutting tools excel, offering superior durability and precision.

Challenges of Machining CFRP/GFRP

Machining CFRP and GFRP requires specialized tools to overcome the following difficulties:

Abrasiveness – The hard and abrasive fibers in these composites cause rapid wear on conventional cutting tools, leading to frequent tool changes and increased downtime.
Delamination – The layered structure makes CFRP/GFRP prone to delamination (separation of layers), which can weaken the finished part.
Heat Generation – Excessive heat during machining can damage the resin matrix, affecting dimensional accuracy and surface quality.
Fiber Pull-Out – The cutting process can dislodge fibers from the matrix, leading to rough surfaces and compromised structural integrity.

Why PCD Tools Are the Best Solution

PCD tools offer key advantages that make them ideal for machining CFRP/GFRP:

Exceptional Hardness – PCD is one of the hardest known materials, providing outstanding wear resistance and significantly longer tool life compared to carbide or HSS tools.
Sharp Cutting Edges – Precision-engineered cutting edges reduce cutting forces, minimizing delamination and fiber pull-out.
Superior Heat Dissipation – High thermal conductivity allows PCD tools to efficiently manage heat, preventing material damage.
Chemical Inertness – PCD does not react with the resin matrix in CFRP/GFRP, ensuring consistent machining performance.

Types of PCD Tools for CFRP/GFRP Machining

Different PCD tool types cater to various machining needs:

PCD Drills – Designed for high-precision hole-making in CFRP/GFRP. Specialized geometries, such as brad point or diamond-tipped drills, help minimize delamination.
See Telcon’s PCD premium drills
PCD End Mills – Ideal for milling slots, pockets, and intricate shapes. Spiral flute designs with chipbreakers enhance chip evacuation and heat management.
See Telcon’s PCD premium spiral end mills
PCD Reamers – Ensure precise hole diameters and excellent surface finishes.
PCD Routers – Used for trimming and profiling CFRP/GFRP parts, often featuring diamond-tipped edges for efficient material removal.
See Telcon’s CVD routers

Optimizing PCD Tool Performance

To maximize the efficiency and lifespan of PCD tools, consider these best practices:

Tool Selection – Choose the appropriate PCD tool geometry and grade based on material type, machining operation, and surface finish requirements.
Cutting Parameters – Optimize cutting speeds, feed rates, and depths of cut to achieve the best balance between tool life, productivity, and part quality.
Cooling and Lubrication – Use air blast or minimum quantity lubrication (MQL) to control heat and minimize tool wear.
Tool Maintenance – Regularly inspect and maintain PCD tools to ensure consistent performance and prevent premature failure.

Benefits of Using PCD Tools for CFRP/GFRP Machining

Higher Productivity – Longer tool life and faster machining cycles improve overall efficiency.
Superior Part Quality – PCD tools deliver excellent surface finishes while minimizing delamination and fiber pull-out.
Cost Efficiency – Although PCD tools have a higher initial cost, their extended lifespan and reduced downtime result in significant long-term savings.

Conclusion

PCD cutting tools are indispensable for machining CFRP and GFRP composites with precision and efficiency. By understanding machining challenges and implementing the right tool selection and cutting strategies, manufacturers can maximize productivity, enhance part quality, and reduce overall costs—unlocking the full potential of these advanced materials.
